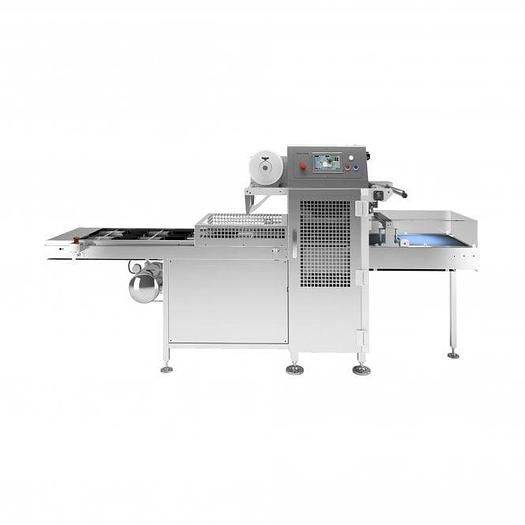

Italian Pack Perseus Tray Sealer

The Italian Pack Perseus tray sealer is a is an automatic inline tray packing machine. These machines are designed for a wide range of applications within the food industry. The high quality materials and attention to detail make for a highly reliable machine for maximum packaging accuracy.

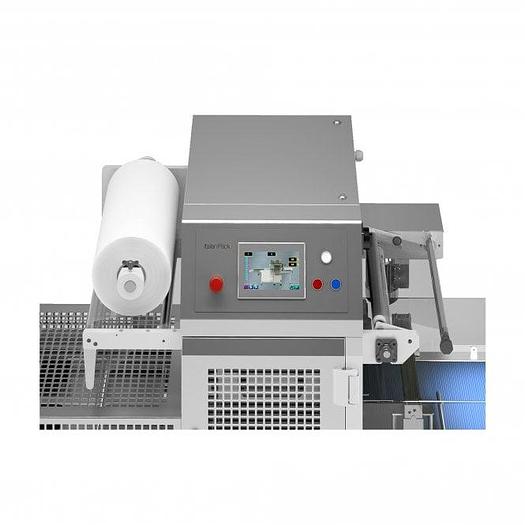

The Italian Pack Perseus tray sealer features a 7" Omron touch screen control panel with 65000 colours. These machines are known for their strong build quality, easy to use design, competitive pricing and low operating costs.

The PLC touch screen comes with colour display, USB port/Ethernet, 99 packaging programs, language selection, integrated temperature control, menu driven MAP parameters.

Italian Pack Perseus Tray Packers can pack up to 60 trays/min in seal only mode, 32 trays/min in MAP mode and 28 trays/min in Skin mode.

The special film waste re-winder, a PLC touch screen to monitor machine parameters and dedicated die/mould extraction and change systems are some of the technical features that make this machine stand out among others.

Easy Opening: easy opening without tools for daily cleaning

Electric box: AISI 304 IP67 stainless steel electric box, wire welded frame, numbered cables, ensures easy access for cleaning operations.

Easy Access: Access to sealing, vacuum units and feeding chains through front door for quick and easy maintainance and cleaning operations.

The Italian Pack Oceania tray sealer can be used for the following types of tray packing:

• Seal Only (top seal only)
• MAP Gas Flushing
• Skin Packing

Key Features:

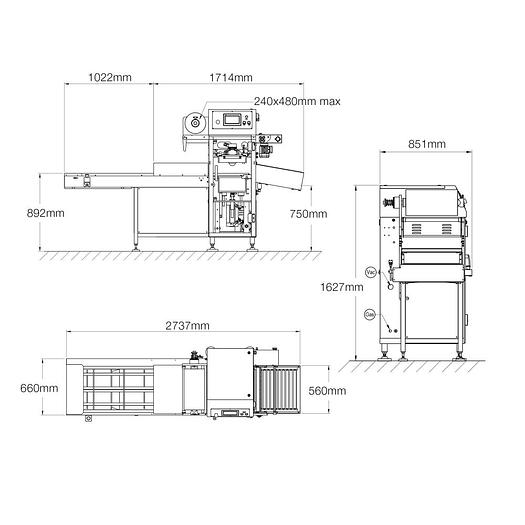

• External Dimensions 2738 x 849 x 1552mm
• Max Tray Depth 110mm standard (165mm optional)
• Max Film Width 480mm
• Max Film Diameter 300mm
• Pump Type (Vacuum/Gas) - Busch 100m3 (not suitable for packing red meats / pork etc)
• Pump Type (Vacuum/Gas) - Busch 100m3 O2 (for packing red meats / pork etc)
• Power - 3.8kW (3 phase)
• Cycle Time - Up to 28 trays/min
• Weight - 450kg
